Serial No. P520001 IMAGE 1

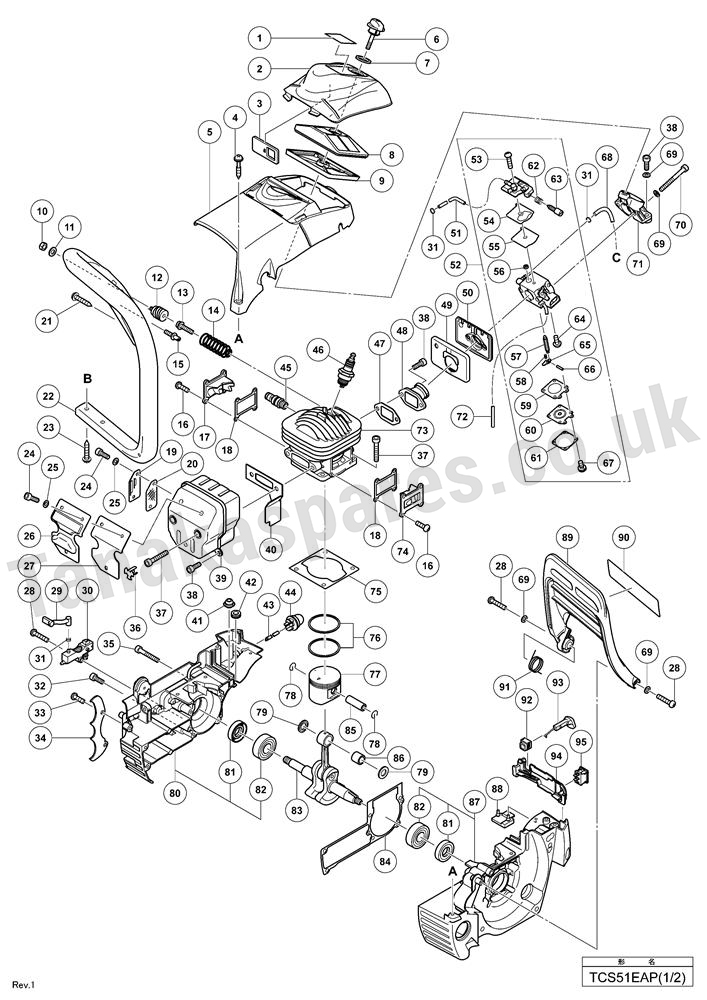

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	6698568	CLEANER COVER	£6.36	Add
003	6698569	SHUTTER PLATE	£3.44	Add
004	6696903	COVER SET BOLT	£1.76	Add
005	6698708	CYL COVER	£22.53	Add
006	6698595	CLEANER KNOB (VERMILLION)	£7.18	Add
007	6698570	KNOB PACKING	£7.18	Add
008	6698563	CLEANER ELEMENT	£6.36	Add
009	6698562	CLEANER ELEMENT	£6.36	Add
010	6698449	NUT M6	£2.13	Add
011	949432	BOLT WASHER M6	£2.90	Add
012	6698429	SPRING HOLDER	£3.43	Add
013	881722	HEX. SOCKET HD. BOLT (W/FLANGE) M6X20 (OBSOLETE)	N/A
014	6698428	ANTY VIBE SPRING	£3.43	Add
015	6685413	DAMPER SET BOLT	£2.14	Add
016	6696835	SEAL LOCK SCREW M4X10	£3.30	Add
017	6698539	SCAVENGING COVER (B)	£12.53	Add
018	6698540	COVER GASKET	£2.14	Add
019	6698903	EXHAUST PIPE (C51)	N/A
020	6698575	MUFFLER GAUZE (C51)	N/A
021	305558	TAPPING SCREW (W/FLANGE) D5X25 (BLACK) (OBSOLETE)	N/A
022	6698578	FRT HANDEL	£69.29	Add
023	302089	TAPPING SCREW D5X20	£2.26	Add
024	949812	HEX. SOCKET HD. BOLT M4X10 (10 PCS.)	£2.07	Add
025	323210	BOLT WASHER M4 (BLACK)	£3.80	Add
026	6698904	MUFFLER PROTECTOR	£3.43	Add
027	6698905	MUFFLER PROTECTOR GAUZE	N/A
028	949219	MACHINE SCREW M4X16 (10 PCS.)	£2.13	Add
029	6698900	OIL PIPE (CS40)	N/A
030	6698554	OIL PUMP (OBSOLETE) (OBSOLETE)	N/A
031	6685311	CLIP	£2.08	Add
032	6685412	SEAL LOCK HEX. SOCKET HD. BOLT M5	£2.08	Add
033	6698901	SEAL LOCK SCREW M5X12	£4.69	Add
034	6685400	SPIKE	£17.91	Add
035	6698902	SEAL LOCK HEX. SOCKET HD. BOLT M5X45	N/A
036	6698706	MUFFLER CAP	N/A
037	6698899	SEAL LOCK HEX. SOCKET HD. BOLT M6X20	£4.69	Add
038	6696836	HEX. SOCKET HD. BOLT M5X12 (PRECOTE)	£4.69	Add
039	6698573	MUFFLER	£87.65	Add
040	6698576	MUFFLER GASKET	£9.61	Add
041	6684618	FUEL PIPE L180	£3.43	Add
043	6696476	PIPE	£1.84	Add
044	6685139	PRIMING PUMP COMP	£9.91	Add
045	6698541	DECOMP.	N/A
046	BPMR7A	SPARK PLUG BPMR7A	£3.52	Add
047	6698549	INTAKE GASEKT	£2.14	Add
048	6698906	INTAKE MANAFOLD	£19.25	Add
049	6698551	CARB INS RUBER	£3.43	Add
050	6698552	CARB INSULATOR	£3.43	Add
051	6698907	FUEL PIPE (FKM)	N/A
052	6698705	CARB	£144.62	Add
053	6685210	SET SCREW	£3.29	Add
054	6685212	PUMP GASKET	£3.59	Add
055	6685213	DIAPHRAGM	£8.45	Add
056	6684700	INLET SCREEN	£3.13	Add
057	6685215	NEEDLE VALVE	£6.88	Add
058	6690873	VALVE SPRING	£5.86	Add
059	6685220	GASKET	£3.43	Add
060	6684690	DIAPHRAM	£13.94	Add
061	6685222	DIAPHRAGM COVER	£7.82	Add
062	6690766	IDLE ADJUST SPRING	£3.13	Add
063	6685298	IDLE ADJUST SCREW	£4.76	Add
064	6685218	HINGE PIN SET SCREW	£3.13	Add
065	6685217	LEVER	£5.20	Add
066	6685219	HINGE PIN	£3.29	Add
067	6685223	SCREW	£3.29	Add
068	6698908	FUEL PIPE	N/A
068	6698930	FUEL PIPE FOR USA.CAN	N/A
069	6685408	WASHER 5	£2.14	Add
070	6696317	HEX. SOCKET HD. BOLT M5X45	£2.07	Add
071	6698553	CARB SUPPORT	£2.05	Add
072	6698721	FUEL PIPE	N/A
073	6698537	CYLNDER	£87.65	Add
074	6698538	SCAVENGING COVER (A)	N/A
075	6698542	CYL GASKET	£2.14	Add
076	6698534	PISTON RING	£13.42	Add
077	6698909	PISTON	£38.60	Add
078	6696854	CIR CLIP	£2.14	Add
079	6698910	PISTON PIN COLLER	£3.43	Add
080	6698531	ENGINE CASE	£0.47	Add
081	6698914	OIL SEAL	£4.91	Add
082	6202C3	BALL BEARING 6202C3	£12.82	Add
083	6698532	CRANKSHAFT	£77.09	Add
084	6698535	CRANK CASE PACKING (C51)	N/A
085	6696855	PISTON PIN	£3.43	Add
086	6698911	NEEDEL BEARING	£13.42	Add
087	6698530	ENGINE CASE (A) ASS'Y INCLUD.81.82	N/A
088	6698709	REAR DAMPER (C51)	N/A
089	6698572	BRAKE HANDLE	£9.61	Add
091	6698912	BRAKE LEVER SPRING (B)	N/A
092	6685369	CHOKE ROD RUBBER	£5.88	Add
093	6698593	CHOKE BUTTON (VERMILION)	N/A
094	6698565	OPERATION PLATE	N/A
095	6601275	STOP SWITCH 2390	£3.03	Add
096	6698988	HEX. SOCKET HD. BOLT	£2.14	Add
