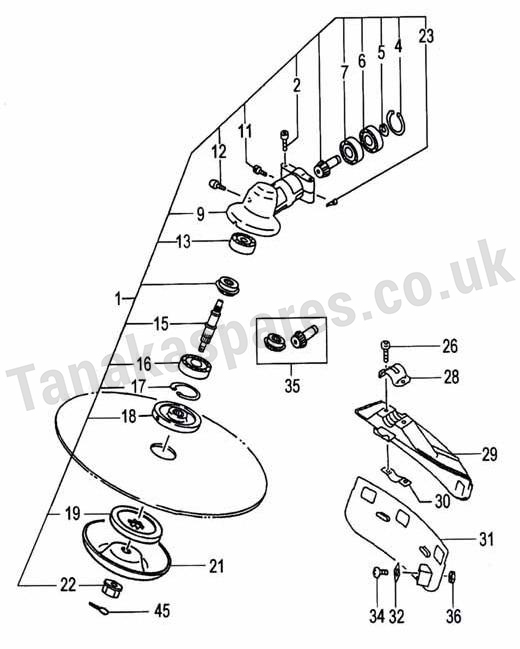

GEAR CASE/GUARD (W047625 -)

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6688696	GEAR CASE ASSY (OBSOLETE) (OBSOLETE)	N/A
002	6684709	HEX.HOLE BOLT 5X25/S	£1.84	Add
004	6695294	STOP RING (OBSOLETE) (OBSOLETE)	N/A
005	6695315	OUTER STOP RING	£3.59	Add
006	6695526	BALL BEARING	£14.61	Add
007	6695524	BEARING	£10.86	Add
009	6688771	GEAR CASE ASSY	£141.10	Add
011	6684667	HEX.HOLE BOLT 5X12S	£1.84	Add
012	6689109	OILING BOLT	£2.33	Add
013	6684734	BEARING	£9.42	Add
015	6688924	GEAR SHAFT	£26.69	Add
015	6688946	GEAR SHAFT	£28.44	Add
016	6695554	BEARING	£11.69	Add
017	6695295	STOP RING	£1.84	Add
018	6689032	CUTTER HOLDER (OBSOLETE) (OBSOLETE)	N/A
019	6689055	CUTTER HOLDER	£12.66	Add
021	6688995	PROTECTION COVER B	£14.88	Add
022	6689073	FIXING NUT M1OX1.25 (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
023	6689160	GEAR CASE WASHER	£1.84	Add
026	6697451	HEX SCREW 6X25	£1.72	Add
028	6690294	COVER BRACKET	£3.01	Add
029	6690242	SAFETY COVER (OBSOLETE) (OBSOLETE)	N/A
030	6684748	COVER BRACKET (OBSOLETE) (OBSOLETE)	N/A
031	6690372	SHROUD	£12.42	Add
032	6693386	BLADE	£8.53	Add
034	6695334	SCREW (OBSOLETE) (OBSOLETE)	N/A
035	6688875	GEAR/PINION SET,SPARE	£48.58	Add
036	6684965	HEX NUT (OBSOLETE) (OBSOLETE)	N/A
045	6689168	SPLIT PIN SET	£1.84	Add
