CARBURETOR

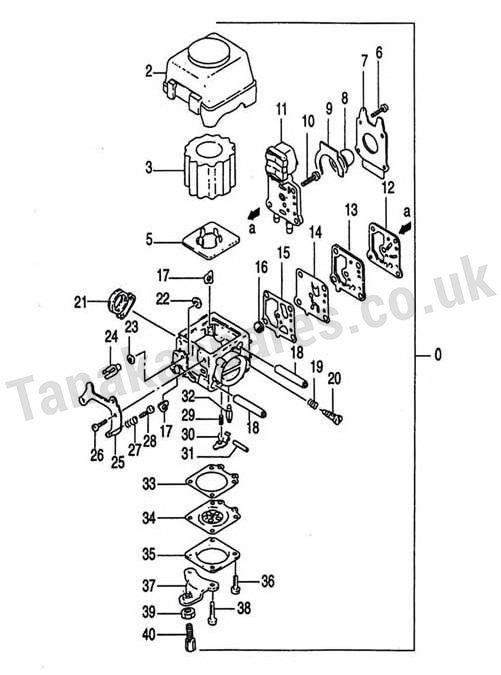

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

CARBURETOR

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
000 6690625 CARB ASSY SUPERSEDES £97.48 Add
002 6690152 CLEANER CAP £7.90 Add
003 6690075 CLEANER ELEMENT (OBSOLETE) N/A
005 6690169 CLEANER BASE £4.84 Add
006 6691313 SET SCREW £3.41 Add
007 6690427 BRACKET £6.96 Add
008 6684689 PRIMING BODY £5.57 Add
009 6692109 OVER FLOW GASKET £4.06 Add
010 6691313 SET SCREW £3.41 Add
011 6691424 PUMP BODY COMP (OBSOLETE) N/A
012 6691235 PUMP PLATE GASKET £3.29 Add
013 6691243 PUMP PLATE £4.26 Add
014 6691447 PUMP DIAPHRAGM £7.48 Add
015 6691458 PUMP DIAPHRAGM GASKET £3.65 Add
016 6684700 INLET SCREEN £3.29 Add
017 636-25108-20 SLEEVE PLATE £10.73 Add
018 4372510820 SLEEVE £9.68 Add
019 6690898 HIGH ADJUST SPRING £3.29 Add
020 6690698 HIGH ADJUST SCREW £8.41 Add
021 6690380 CARBURETOR GASKET £4.57 Add
022 6684696 STOP RING £3.86 Add
023 6691316 O-RING £4.57 Add
024 6691295 SWIVEL £5.54 Add
025 6691300 ADJUSTER STAY £7.48 Add
026 6691217 SET SCREW £3.65 Add
027 46325100200 IDLE ADJUST SPRING £5.51 Add
027 462.25100.201 IDLE ADJUST SCREW £3.78 Add
029 6690870 VALVE SPRING £3.29 Add
030 6685217 LEVER £4.92 Add
031 6685219 HINGE PIN £3.41 Add
032 6685215 NEEDLE VALVE £6.24 Add
033 6690837 DIAPHRAGM GASKET £4.85 Add
034 6690827 METERING DIAPHRAGM COMP £12.41 Add
035 6685222 DIAPHRAGM COVER £6.64 Add
036 51425105200 SET SCREW £4.60 Add
037 6692008 CABLE ADJUSTER STAY £7.74 Add
038 6691217 SET SCREW £3.65 Add
039 6692005 USE 991.01060.013 £2.95 Add
040 6692007 USE 614.25137.20 £4.37 Add
