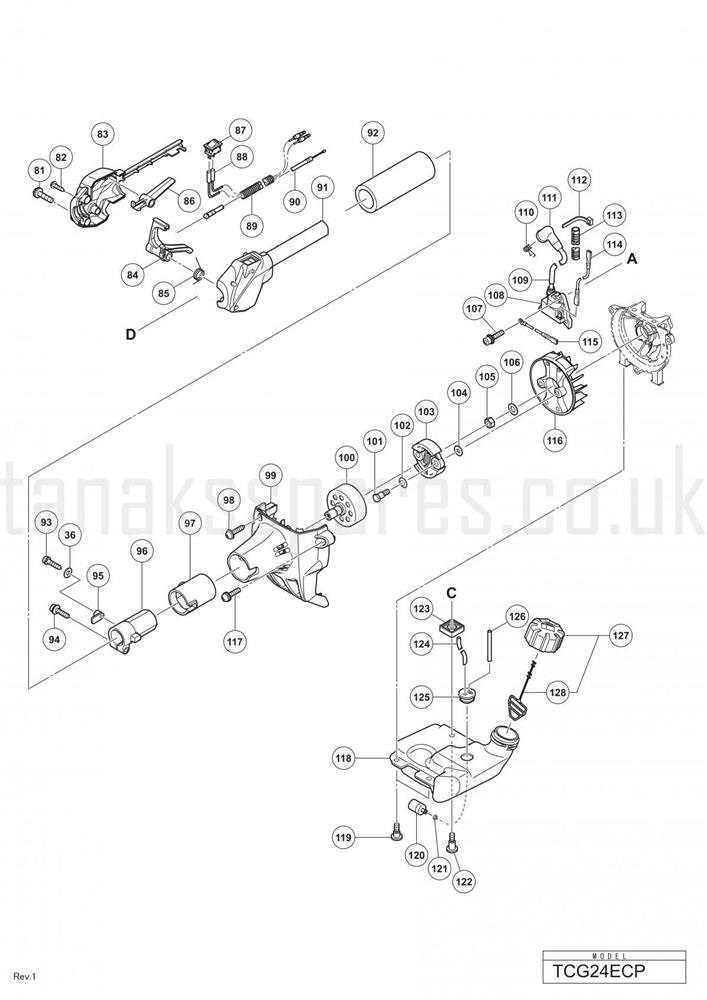

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
081	995096	MACHINE SCREW (W/WASHERS) M5X20 (BLACK)	N/A
082	305812	TAPPING SCREW (W/FLANGE) D4X16 (BLACK)	£2.45	Add
083	6600566	T/HANDLE B 2390 (OBSOLETE) (OBSOLETE)	N/A
084	6600568	THROTTLE LEVER	£3.81	Add
085	6696489	SPRING (A)	£2.14	Add
086	6600567	TRIGGER LOCKOUT	£9.01	Add
087	6601275	STOP SWITCH 2390	£3.03	Add
088	6696491	STOP SWITCH CORD	N/A
089	6696967	PROTECTION TUBE	N/A
090	6600569	T/WIRE 2390	£3.03	Add
091	6600565	T/HANDLE A 2390	£4.39	Add
092	6600538	GRIP (LOOP)	N/A
093	6600919	HEX. SOCKET HD. BOLT (W/SP.WASHER) M5	N/A
094	6600372	HEX. SOCKET HD. BOLT (W/WASHERS) M5	N/A
095	6689664	INSERT	£6.26	Add
096	6600551	PIPE HOLDER	N/A
097	6600552	DAMPER (HOLDER)	N/A
098	6698878	TAPPING SCREW D4. 5X16	£2.14	Add
099	6601378	FAN CASE	£39.78	Add
100	6600549	CLUTCH DRUM	£16.85	Add
101	6696469	STEP BOLT	£2.14	Add
102	6684648	BEND WASHER.	£1.84	Add
103	6600435	CL SHOES & SPRING	£33.40	Add
104	6696547	CLUTCH WASHER	£2.14	Add
105	6685337	FLYWHEEL NUT	£2.14	Add
106	323212	BOLT WASHER M8 (BLACK)	£3.14	Add
107	6698388	HEX.SOCKET HD.BOLT W/W	£2.14	Add
108	6601380	IGNITION COIL	£73.25	Add
109	6600051	CORD INSULATION TUBE L100	N/A
110	6699186	PLUG CAP METAL	N/A
111	6699932	PLUG CAP	N/A
112	6698943	BAND	N/A
113	6601345	PROTECTION TUBE L50	N/A
114	6698495	CORD	N/A
115	6696545	EARTH CORD	N/A
116	6699289	MAGNETO ROTOR	£37.30	Add
117	6600920	MACHINE SCREW (W/WASHERS) M5X18	N/A
118	6600519	FUEL TANK	£12.77	Add
119	6696574	BOLT	£2.14	Add
120	6600351	PUMP FILTER	£5.86	Add
121	6696949	CLIP	£2.14	Add
122	6698512	BOLT W/FLANGE	£3.42	Add
123	6699558	SPACER	£1.76	Add
124	6692345	FUEL PIPE	£3.66	Add
125	6600358	F/TANK GROMMET DOUBLE	£5.60	Add
126	6600521	F PIPE	£3.10	Add
127	6685049	TANK CAP ASSY	£9.80	Add
128	6698732	TANK CAP CHAIN	N/A
