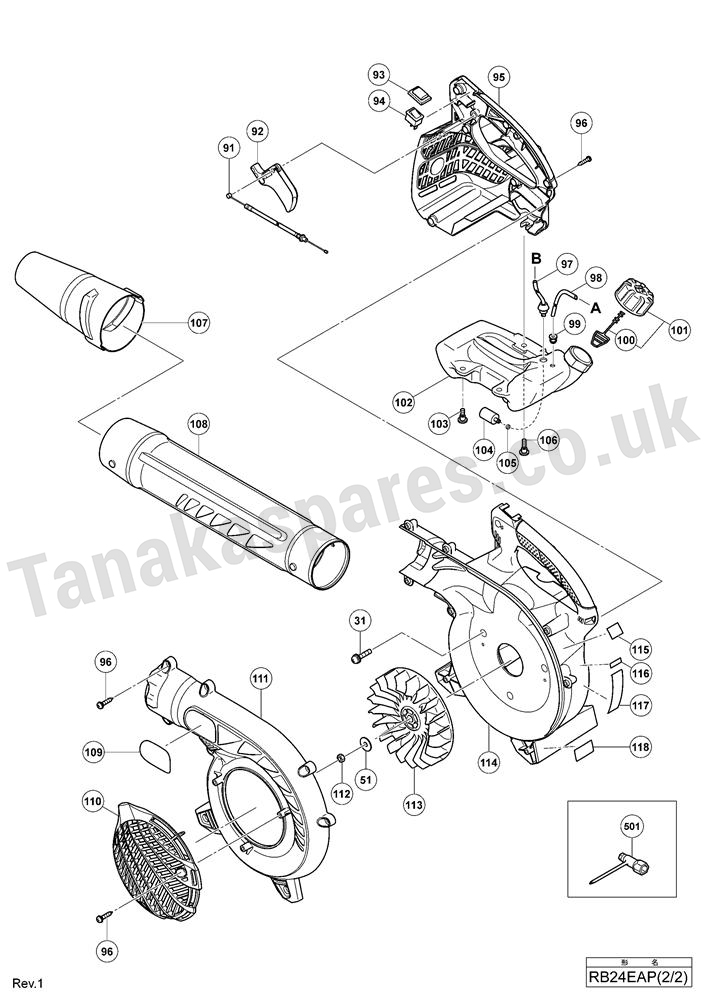

IMAGE 2

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
031	880734	MACHINE SCREW (W/WASHERS) M5X25 (BLACK)	£1.90	Add
051	323212	BOLT WASHER M8 (BLACK)	£3.14	Add
091	6698399	TROTTLE WIRE (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
092	6698391	TROTTLE LEVER (OBSOLETE)	N/A
093	6698400	SWITCH COVER	£1.64	Add
094	6601275	STOP SWITCH 2390	£3.03	Add
095	6698390	MUFFLER PROTECTOR	£19.25	Add
096	302089	TAPPING SCREW (W/FLANGE) D5X20 (BLACK)	£2.07	Add
097	6684618	FUEL PIPE L180 (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
098	6699014	FUEL PIPE (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
099	6697447	RETURN GROMMET (OBSOLETE) (OBSOLETE)	N/A
101	6685049	TANK CAP ASSY	£9.80	Add
102	6698377	FUEL TANK	£26.90	Add
103	6696574	BOLT	£2.14	Add
104	6684620	FILTER	£5.15	Add
105	6696949	CLIP (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
106	6698392	BOLT	£3.65	Add
107	6698394	NOSSLE B	£7.85	Add
108	6698393	NOSSLE A (OBSOLETE)	N/A
110	6698381	GUARD NET	£3.43	Add
111	6698383	VOLUTE CASE	£16.02	Add
112	6698395	NUT	£3.65	Add
113	6698378	FAN	£10.22	Add
114	6698380	FAN CASE	£35.75	Add
501	6698403	WRENCH 13/19MM PLUS EXCEPT FOR USA.CAN	N/A
